Union
Flangeman Steel Worldwide Pvt Ltd manufactures and supplies high-quality Forged Fitting Unions, designed to connect two pipes in a piping system while allowing easy disassembly for maintenance or replacement. Unlike standard couplings, unions can be disconnected without cutting the pipe, making them ideal for systems that require frequent servicing or inspection.
Manufactured using advanced closed-die forging technology, our forged unions provide superior strength, leak-proof performance, and long-term durability in high-pressure and high-temperature applications.
Types of Forged Unions

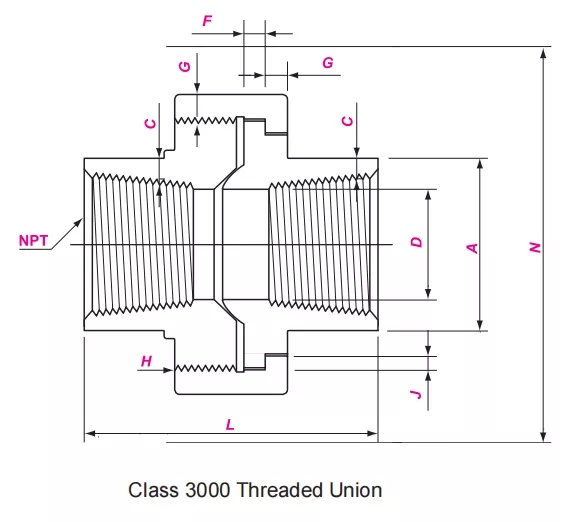

Threaded Union – Designed for threaded pipe connections (NPT / BSPT)

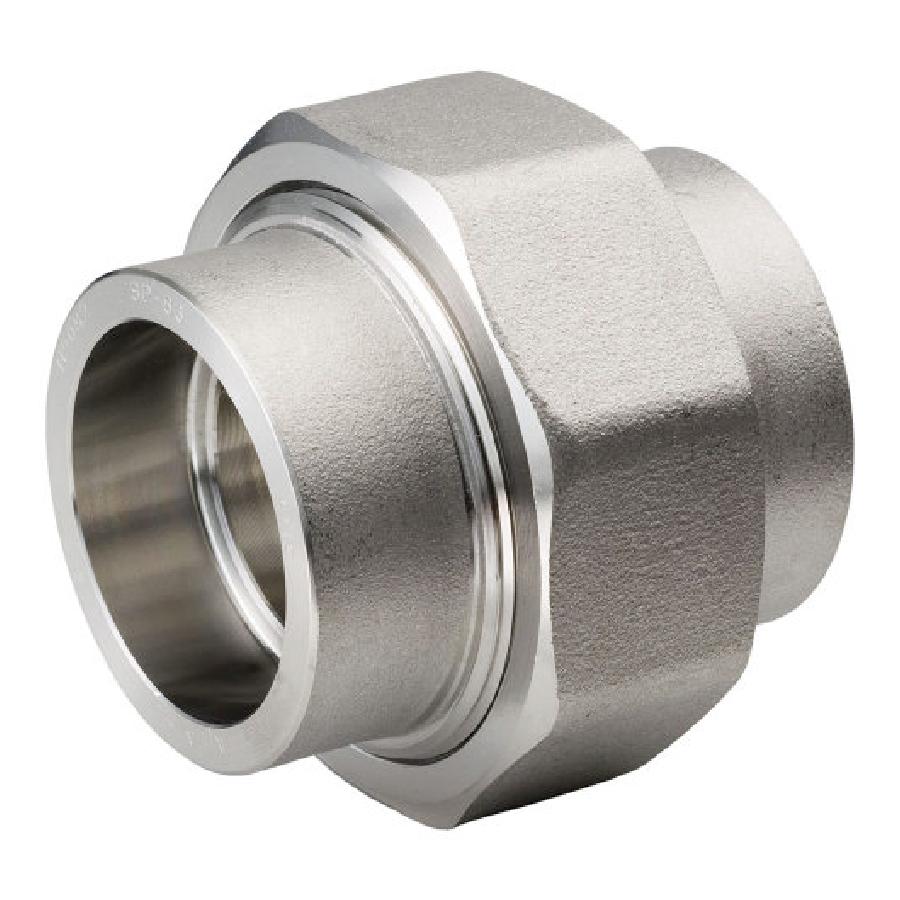

Socket Weld Union – Used in high-pressure systems requiring welded connections.
Features of Forged Fitting Union
Flangeman Steel Worldwide Pvt Ltd’s forged unions are precision-engineered for reliable and secure pipe connections. Manufactured through hot forging, these fittings offer superior mechanical strength, excellent grain structure, and enhanced resistance to pressure and temperature. The union design allows convenient maintenance and system modification without cutting or welding the pipeline. Available in carbon steel, stainless steel (304/316), and alloy steel, these fittings provide excellent corrosion resistance and long service life. Smooth internal finishing ensures minimal pressure drop and efficient flow performance, while threaded and socket weld options ensure secure and leak-proof joints in demanding industrial environments.
Product Features
Precision hot-forged construction for superior strength
High tensile strength and durability
Smooth internal surface for efficient flow
Leak-proof threaded and socket weld connection types
Available in straight and reducing configurations
Corrosion-resistant material options
Long service life with low maintenance
Compliance with international standards: ASME B16.11, MSS-SP-79/83, and ASTM specifications
Material Used in Manufacturing Union.
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Key Applications
Oil & Gas Industries
Petrochemical Plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Pulp and Paper Industry
Sea Water Equipment
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
Petrochemicals
Heat Exchangers
Pharmaceuticals
Standards and Specification.
| Parameter | Specification |
|---|---|
| Product Name | Forged Fitting Union |
| Types | Threaded / Socket Weld |
| Size Range | 1/8” to 4” (DN6 – DN100) |
| Pressure Class – Threaded | 2000 LB, 3000 LB, 6000 LB |
| Pressure Class – Socket Weld | 3000 LB, 6000 LB, 9000 LB |
| Manufacturing Process | Closed Die Forging |
| Carbon Steel Grade | ASTM A105 / A105N |
| Stainless Steel Grades | ASTM A182 F304 / F304L / F316 / F316L |
| Alloy Steel Grades | ASTM A182 F11 / F22 / F91 |
| Design Standard | ASME B16.11 |
| Thread Standard | ANSI/ASME B1.20.1 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Black, Galvanized, Pickled & Passivated |
| Certification | EN 10204 3.1 MTC |
We at, Flangeman Steel Worldwide Pvt Ltd, undertake hardness and resilience tests prior to delivering them to our customers. As we are one of the foremost Manufacturers of stainless steel flanges in India, we also provide Slip-on-flanges, lap joint flanges, socket weld flanges, threaded flanges, etc. Professionals from our squad also scrutinize the item to validate the quality of the product before packaging it for consumers
