Butt-Weld Concentric Reducer Fittings

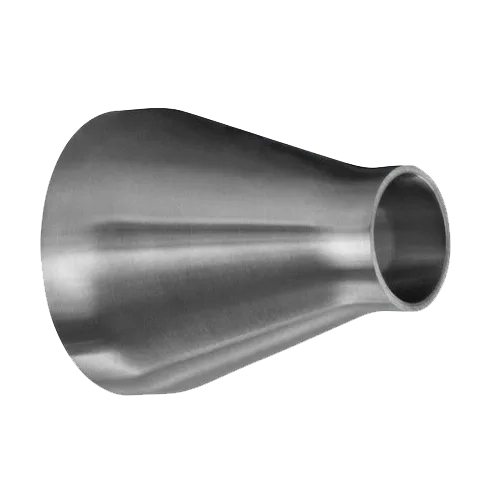

Butt-Weld Concentric Reducers are high-quality piping components designed to connect two pipes of different diameters along a common centerline. These reducers provide a smooth and gradual transition between pipe sizes, ensuring efficient flow with minimal turbulence and pressure loss. Manufactured using advanced hot-forming and butt-weld preparation processes, concentric reducers offer excellent mechanical strength, dimensional accuracy, and long service life.
Features of Butt-Weld Concentric Reducers
Flangeman Steel Worldwide Pvt Ltd’s Butt-Weld Concentric Reducers are engineered for precision and durability in demanding industrial applications. Key features include:
Common centerline design: Maintains symmetrical flow and uniform stress distribution.
High mechanical strength: Suitable for high-pressure and high-temperature environments.
Smooth internal transition: Reduces turbulence, vibration, and pressure drop.
Permanent leak-proof connection: Butt-weld ends ensure strong and secure joints.
Material versatility: Available in carbon steel, stainless steel (304/316), alloy steel, duplex, and special grades for corrosion resistance.
Standards compliance: Manufactured in accordance with ASME B16.9, ASTM A234 WPB, MSS-SP-75, and relevant ASTM specifications.
Material Used in Manufacturing
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Applications
Butt-Weld Concentric Reducers are widely used in piping systems where a gradual size transition is required:
Oil & Gas pipelines and refineries
Petrochemical and chemical processing plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Standards and Specification
| Parameter | Specification |
|---|---|
| Product Name | Butt-Weld Concentric Reducer |
| Connection Type | Butt-Weld |
| Branch Type | Concentric (Same Centerline) |
| Size Range | 1/2” to 24” (DN15 – DN600) |
| Pressure Class | ANSI/ASME B16.9 / Sch. 10 – XXS |
| Material | Carbon Steel, Stainless Steel (304/316), Alloy Steel |
| Manufacturing Process | Hot Forging & Butt-Weld Preparation |
| Design Standard | ASME B16.9, ASTM A234 WPB, MSS-SP-75 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Polished, Pickled & Passivated, Black |
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Compact and strong design for tight piping layouts.
High-performance materials for durability and corrosion resistance.
Rigorous quality control including hydrostatic and dimensional testing.
Long service life with minimal maintenance for critical piping systems.
Butt-Weld Concentric Reducers from Flangeman Steel Worldwide Pvt Ltd provide reliable flow distribution, mechanical strength, and compliance with international standards, making them suitable for demanding industrial and process piping systems.
