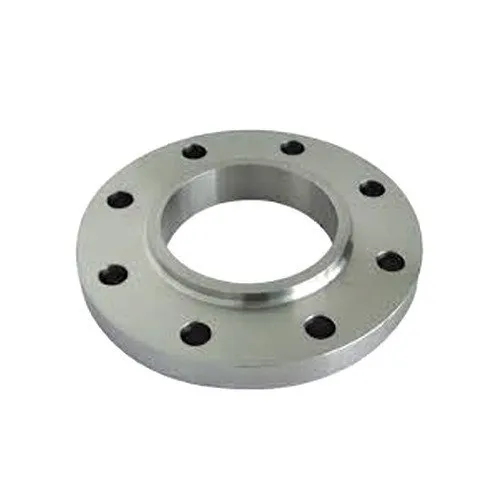

Orifice Flanges
Flanges
Orifice Flanges
Flangeman Steel Worldwide Pvt Ltd is one of the most prominent manufacturers and exporters of flanges in Mumbai, India. Our ORFF Pipe Flanges are designed and manufactured in strict accordance with internationally recognized standards. Among our distinguished offerings in the metal industry, Orifice Flanges stand out for their quality and reliability. We are a certified, quality-driven enterprise with extensive experience in the metal sector.
We manufacture Orifice Flanges for our clients in a diverse range of standards, grades, sizes, and types, all available for prompt global delivery.
At Flangeman Steel Worldwide Pvt Ltd, we produce and export Orifice Flanges conforming to standards such as ANSI, JIS, DIN, EN 1092-1, UNI, BS 4504, SABS 1123, AS 2129, and GOST 12820.
Orifice Flanges are essential components used to measure the flow of fluids in piping systems. When an Orifice Plate is installed, it creates a flow restriction that generates differential pressure, enabling accurate measurement of liquids, steam, or gases. An Orifice Plate is a thin, precision-engineered plate with a central bore that determines the flow rate.
Orifice Flanges Manufacturer, Suppliers, Stockist, Exporters
Features of Orifice Flanges
Orifice Flanges come with either raised faces or ring-type joint (RTJ ) facings.

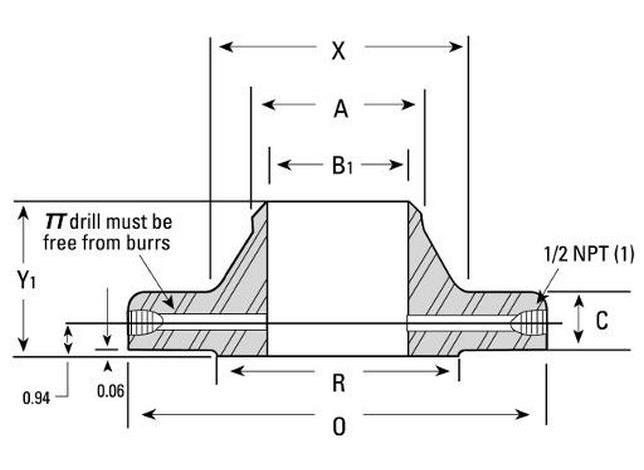

Orifice flanges have radially tapped holes in the flange ring to connect meters.
There are orifice plate carriers in these flanges for the reason of fitting meter connections.
The additional bolts available serve as a jack to allow the separation of the two flanges to change the orifice plate or for other relevant services like an inspection.l
Materials in which Orifice Flanges are available
Orifice Flanges are made up of various materials, but they depend on the environment and stress to which they are subjected.
Stainless Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Advantages of Orifice Flanges
The construction and calibration standards for orifice flanges are readily available.
There is no dramatic increase in price with size; they are inexpensive.
Easy to install and remove.
Easy to measure flow rate, because it produces a considerable pressure drop across the orifice.
Applications of Orifice Flanges
There are many benefits of using Orifice flanges that are explained above. These flanges are also used in various industries like
Heavy and light Chemicals Industries
Paper Industries
Nuclear Industries
Petrochemical Industries
Sewages treatmentst
Power Generation
Oil production and refining
Gas Processing and Transmission and many more.
The Orifice Flanges offered by Hilton Forged India can be customized according to their specifications, forms, and types.
Standards and specifications of Orifice Flanges
| Particulars | Details |
|---|---|
| Standards | ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820 |
| Dimensions | ANSI B 16.36 Orifice Flanges |
| Materials | ASTM A105 Orifice Flanges, ASME SA105 Orifice Flanges ASTM A182 Orifice Flanges, ASME SA182 Orifice Flanges ASTM A350 LF1 Orifice Flanges, LF2 CL1/CL2 Orifice Flanges, LF3 CL1/CL2 Orifice Flanges ASTM A694 F42 Orifice Flanges, F46 Orifice Flanges, F48 Orifice Flanges, F50 Orifice Flanges, F52 Orifice Flanges, F56 Orifice Flanges, F60 Orifice Flanges, F65 Orifice Flanges, F70 Orifice Flanges ASTM B564 Orifice Flanges, ASME SB564 Orifice Flanges |
| Class | Orifice Flanges 150#, Orifice Flanges 300#, Orifice Flanges 600#, Orifice Flanges 900#, Orifice Flanges 1500# & Orifice Flanges 2500#, PN6 Orifice Flanges, PN10 Orifice Flanges, PN16 Orifice Flanges, PN25 Orifice Flanges, PN40Orifice Flanges, PN63 Orifice Flanges, PN100 Orifice Flanges, PN160 Orifice Flanges, PN250 Orifice Flanges |
| Sizes | 1/2” NB TO 24” NB. |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ), ASTM A182 F304/304L Orifice Flanges, ASTM A182 F304H Orifice Flanges, ASTM A182 F304L Orifice Flanges, ASTM A182 F304 Orifice Flanges, ASTM A182 309H Orifice Flanges, ASTM A182 310H Orifice Flanges, ASTM A182 310 Orifice Flanges.
ASTM A182 F316/316L Orifice Flanges, ASTM A182 F316H Orifice Flanges, ASTM A182 F316L Orifice Flanges, ASTM A182 F316 Orifice Flange |
| Stainless Steel |
ASTM A182 F316/316L Orifice Flanges, ASTM A182 F316H Orifice Flanges, ASTM A182 F316L Orifice Flanges, ASTM A182 F316 Orifice Flanges, ASTM A182 F316Ti Orifice Flanges, ASTM A182 F317 Orifice Flanges, ASTM A182 F317L Orifice Flanges,
ASTM A182 F321 Orifice Flanges, ASTM A182 F321H Orifice Flanges. ASTM A182 F347 Orifice Flanges, ASTM A182 F347H Orifice Flanges, ASTM A182 F904L Orifice Flanges ASTM A182 F44 Orifice Flanges, ASTM A182 F51 Orifice Flanges, ASTM A182 F53 Orifice Flanges, ASTM A182 F55 Orifice Flanges, ASTM A182 F60 Orifice Flanges |
| Alloy Steel | ASTM A182 F1, A182 F5, A182 F9, A182 F11, A182 F12, A182 F22, A182 F91 |
Prior to being supplied to the patron, the items are concluded by our team and put through an assortment of evaluations. Our adept employees are attempting to boost the item’s adequacy, application, or worth to our customers. As per the needs of our devoted customers, our company furnishes a selection of wrapping and shipment alternatives. In the end, to optimize the potency of the Flanges delivery without precipitating any damage, we secured the products utilizing industry-standard packaging items and gave quick delivery to our patron. We are furnishing remarkable quality and service to our faithful clients at low costs.
