Butt-Weld Long 45°
Butt Weld

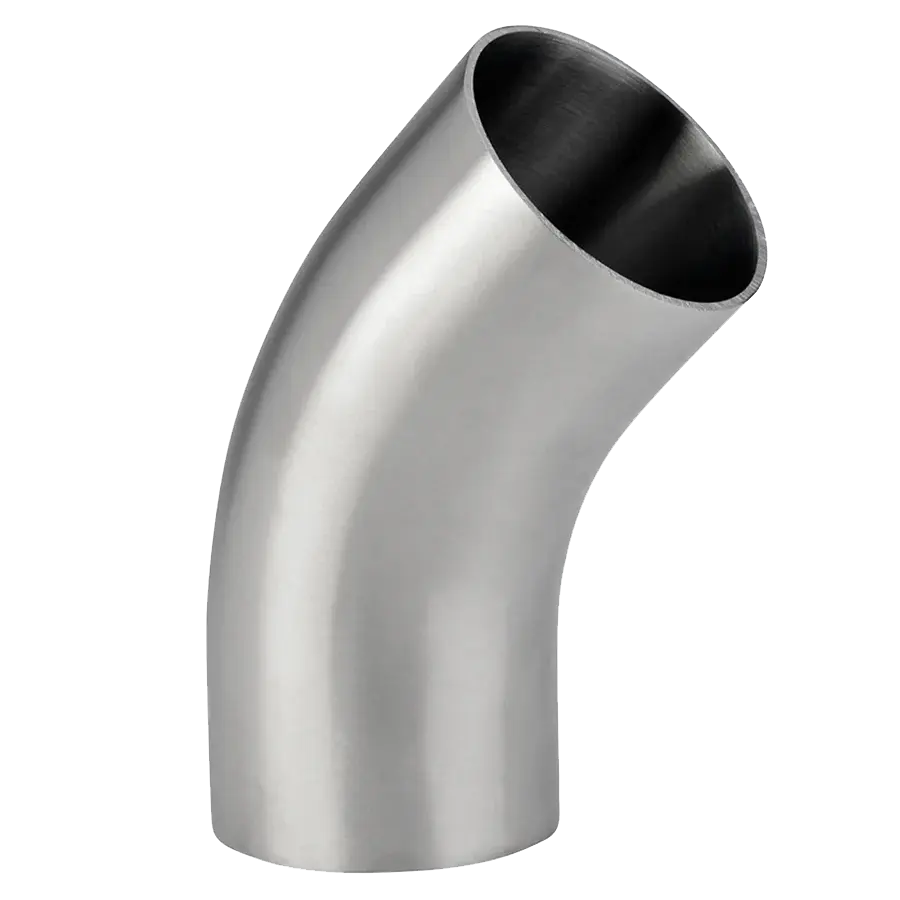

Butt-Weld Long 45° Elbow Fittings
Butt-Weld Long 45° Elbows are precision-engineered piping components designed to provide a smooth 45-degree directional change in piping systems. The long-radius design ensures gentle flow transitions, reducing turbulence, pressure drop, and wear, making them ideal for high-pressure, high-temperature, and critical flow applications.
Features of Butt-Weld Long 45° Elbows
Flangeman Steel Worldwide Pvt Ltd’s Butt-Weld Long 45° Elbows are manufactured using advanced hot-forging and butt-weld preparation techniques to ensure uniform wall thickness and superior mechanical strength. Key benefits include:
Long-radius design: Minimizes turbulence and pressure loss, enhancing flow efficiency
High strength and durability: Withstands high pressure, temperature, and stress.
Smooth internal surface: Reduces erosion, vibration, and noise in pipelines.
Permanent leak-proof joints: Butt-weld connections ensure robust and reliable installation.
Material versatility:Available in carbon steel, stainless steel (304/316), and alloy steel for excellent corrosion and chemical resistance.
Standards compliance: Designed per ASME B16.9, ASTM A234 WPB, and MSS-SP-75 for quality and reliability.
Material Used in Manufacturing Blind Flanges.
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Applications
Long 45° Butt-Weld Elbows are commonly used in industries requiring compact pipe routing and high reliability, including:
Oil & Gas pipelines and refineries
Petrochemical and chemical processing plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Standards and Specification
| Parameter | Specification |
|---|---|
| Product Name | Butt-Weld Long 45° Elbow |
| Connection Type | Butt-Weld |
| Radius Type | Long Radius (1.5×D or 1.5 times nominal diameter) |
| Size Range | 1/2” to 24” (DN15 – DN600) |
| Pressure Class | ANSI/ASME B16.9 / Sch. 10 – XXS |
| Material | Carbon Steel, Stainless Steel (304/316), Alloy Steel |
| Manufacturing Process | Hot Forging & Butt-Weld Preparation |
| Design Standard | ASME B16.9, ASTM A234 WPB, MSS-SP-75 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Polished, Pickled & Passivated, Black |
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Compact and strong design for tight piping layouts.
High-performance materials for durability and corrosion resistance.
Rigorous quality control including hydrostatic and dimensional testing.
Long service life with minimal maintenance for critical piping systems.
Butt-Weld Long 45° Elbows from Flangeman Steel Worldwide Pvt Ltd combine compactness, reliability, and compliance with global standards, ensuring high performance in demanding industrial environments.
