Blind Flanges
Flangeman Steel Worldwide Pvt Ltd is one of the leading companies in the manufacturing and exporting of Blind Flanges/BLRF Flanges. We maintain our status as the best by using high-quality raw materials and providing excellent service. These BLRF flanges are made of premium quality materials such as stainless steel, carbon steel, alloy steel, duplex, super duplex, and Nickel-Based Alloys. At Hilton Forge India, blind flanges are available in various sizes, grades, specifications, and thicknesses to meet the requirements of our clients.

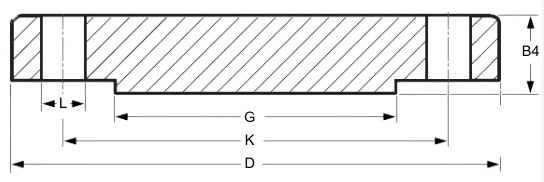

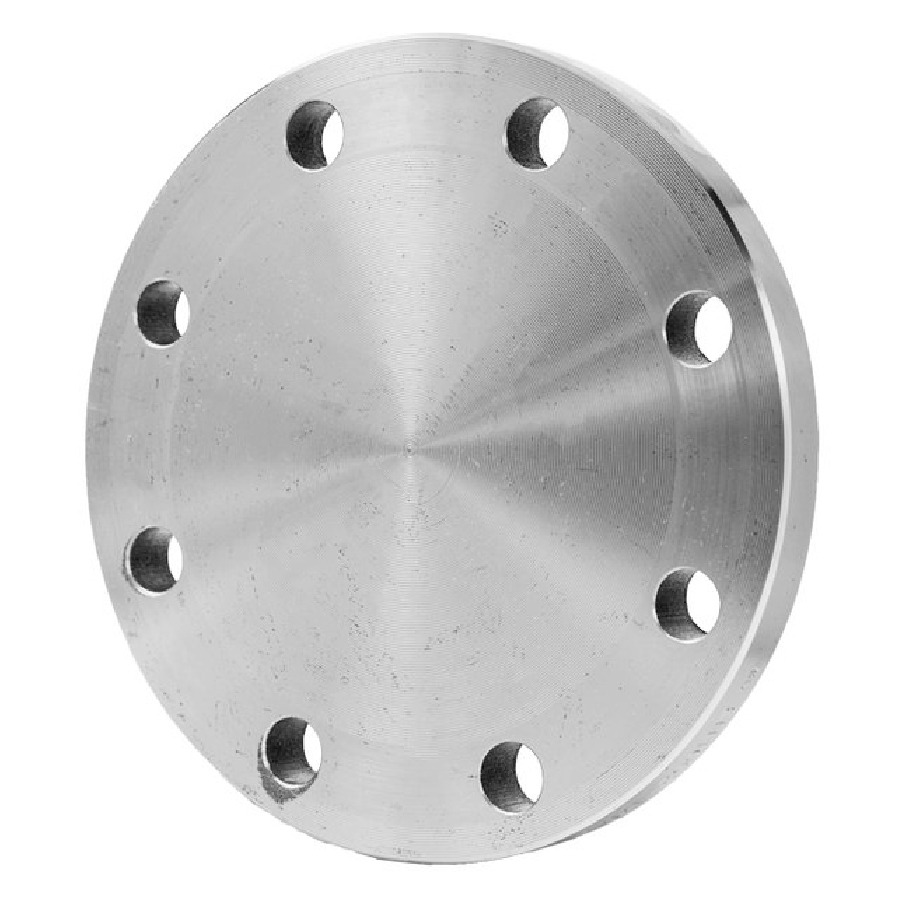

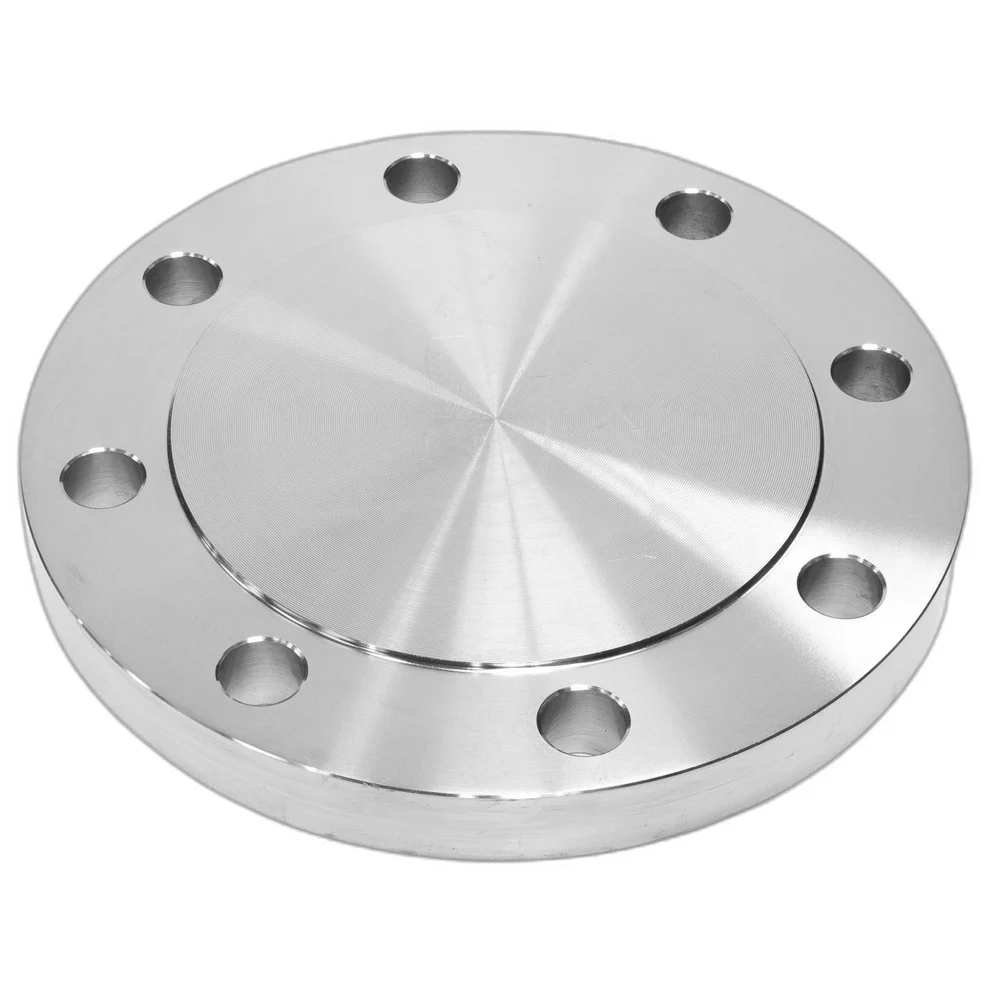

A blind flange (also known as a ‘closure plate flange’) is installed at the end of a piping system to terminate a pipe. It has no center hole (bore), so there is no flow through the flange. They are a critical component used in the flow of various liquids, gases, and other materials. A blind flange is a circular plate with bolt holes that are used to close the end of a pipe.
Features of Blind Flanges
A blind flange can replace a butt weld cap in case an extension of the piping line is required, or in case a piping inspection is required (remove the blind flange to access the pipe interior). This type of flange can also be used as the rod access point on drain systems. Depending upon the application, a blind flange may be drilled and used as a slip-on flange, or tapped and used as a threaded flange. Its connection mode is to connect with the flange, and its main function is to block the pipe. It is a bit similar to the head and cap in the pipe fitting, but it is different from theirs because the place with the flange cover is a “live” pipeline. After all, it can be disassembled when in use, and can be blocked when not in use, Because it is fixed by bolts, it is also very convenient to remove.
Material Used in Manufacturing Blind Flanges.
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Key Applications of Blind Flanges:
System Maintenance and Repair:They act as a safe, temporary seal to isolate sections of pipelines, allowing workers to repair or replace valves and piping without disrupting the entire system.
Pressure Testing (Hydrotesting): Blind flanges are used to cap off pipes while subjecting them to high pressure to test for leaks, ensuring system integrity before operation.
Pipeline Termination and Expansion: They are used to permanently or temporarily terminate a pipeline. Installing them on a tee-junction allows for future, easy expansion without requiring extensive cutting or welding.
Access Point:Because they are bolted rather than welded, they provide an easily accessible entry point for inspections, cleaning, or maintenance inside the pipe.
Industrial Applications:They are commonly utilized in high-pressure environments, such as oil refineries, petrochemical plants, wastewater treatment, and HVAC systems, to manage flow and isolate hazardous materials.
Draining and Sampling: They are used to close off drains, low points in equipment, or sampling points.
Here are a few of the industries where Blind Flanges are been used.
Specialty Chemicals
Power Generation
Condensers
Chemical Equipment
Gas Processing
Pulp and Paper Industry
Sea Water Equipment
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
Petrochemicals
Heat Exchangers
Pharmaceuticals
Standards and Specification of Blind Flanges.
| Particulars | Details |
|---|---|
| Standards | ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820 |
| Dimensions | ANSI B 16.5 Blind Flanges, B16.47 Blind Flanges, SERIES A Blind Flanges, SERIES B Blind Flanges, EN1092-1 Blind Flanges, FLANGE BS 1560. BS 10 Blind Flanges, IS 6392, B-2.1 NPT Blind Flanges, API, DIN Blind Flanges, JIS. MSS SP 44 Blind Flanges. |
| Materials | ASTM A105 Blind Flanges, ASME SA105 Blind Flanges ASTM A182 Blind Flanges, ASME SA182 Blind Flanges ASTM A350 LF1 Blind Flanges, LF2 CL1/CL2 Blind Flanges, LF3 CL1/CL2 Blind Flanges ASTM A694 F42 Blind Flanges, F46 Blind Flanges, F48 Blind Flanges, F50 Blind Flanges, F52 Blind Flanges, F56 Blind Flanges, F60 Blind Flanges, F65 Blind Flanges, F70 Blind Flanges ASTM B564 Blind Flanges, ASME SB564 Blind Flanges. |
| Class | Blind Flanges 150#, Blind Flanges 300#, Blind Flanges 600#, Blind Flanges 900#, Blind Flanges 1500# & Blind Flanges 2500#, PN6 Blind Flanges, PN10 Blind Flanges, PN16 Blind Flanges, PN25 Blind Flanges, PN40 Blind Flanges, PN63 Blind Flanges, PN100 Blind Flanges, PN160 Blind Flanges, PN250 Blind FlangesS |
| Sizes | 1/2” NB TO 24” NB |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ), ASTM A182 F304/304L Blind Flanges, ASTM A182 F304H Blind Flanges, ASTM A182 F304L Blind Flanges, ASTM A182 F304 Blind Flanges, ASTM A182 309H Blind Flanges, ASTM A182 310H Lap Blind Flanges, ASTM A182 310 Blind Flanges ASTM A182 F316/316L Blind Flanges, ASTM A182 F316H Blind Flanges, ASTM A182 F316L Blind Flanges, ASTM A182 F316 Blind Flanges. |
| Stainless Steel | ASTM A182 F316/316L Blind Flanges, ASTM A182 F316H Blind Flanges, ASTM A182 F316L Blind Flanges, ASTM A182 F316 Blind Flanges, ASTM A182 F316Ti Blind Flanges, ASTM A182 F317 Blind Flanges, ASTM A182 F317L Blind Flanges, ASTM A182 F321 Blind Flanges, ASTM A182 F321H Blind Flanges, ASTM A182 F347 Blind Flanges, ASTM A182 F347H Blind Flanges, ASTM A182 F904L Blind Flanges ASTM A182 F44 Blind Flanges, ASTM A182 F51 Blind Flanges, ASTM A182 F53 Blind Flanges, ASTM A182 F55 Blind Flanges, ASTM A182 F60 Blind Flanges |
| Alloy Steel | ASTM A182 F1, A182 F5, A182 F9, A182 F11, A182 F12, A182 F22, A182 F91 |
We at, Flangeman Steel Worldwide Pvt Ltd, undertake hardness and resilience tests prior to delivering them to our customers. As we are one of the foremost Manufacturers of stainless steel flanges in India, we also provide Slip-on-flanges, lap joint flanges, socket weld flanges, threaded flanges, etc. Professionals from our squad also scrutinize the item to validate the quality of the product before packaging it for consumers
