Lap Joint Flanges
Flanges
Lap Joint Flanges
Flangeman Steel Worldwide Pvt Ltd is a renowned manufacturer and exporter of Lap Joint Flanges, based in Mumbai, India. Our comprehensive range of Lap Joint Flanges is precisely engineered to meet diverse piping requirements across various industries.
At Flangeman Steel Worldwide Pvt Ltd, we manufacture Lap Joint Flanges in a wide selection of materials, including Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Super Duplex Steel, and Nickel-based alloys, ensuring suitability for demanding applications.
Our Lap Joint Flanges are produced in compliance with international standards such as ANSI, JIS, DIN, EN 1092-1, UNI, BS 4504, SABS 1123, AS 2129, and GOST 12820, and are available in a wide range of sizes. All products are manufactured under strict International Quality Standards (IQS) to ensure superior performance, durability, and reliability.
Additionally, we offer custom-designed Lap Joint Flanges tailored to meet our clients’ specific technical requirements.
Stainless Steel Lap Joint Flanges Manufacturer, Suppliers, Stockist, Exporters –Flangeman Steel

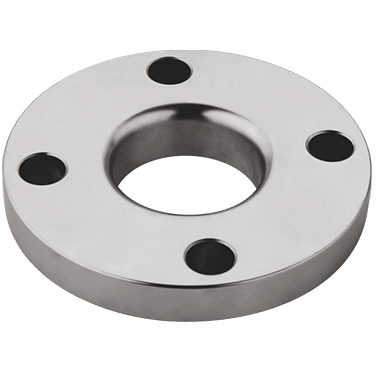

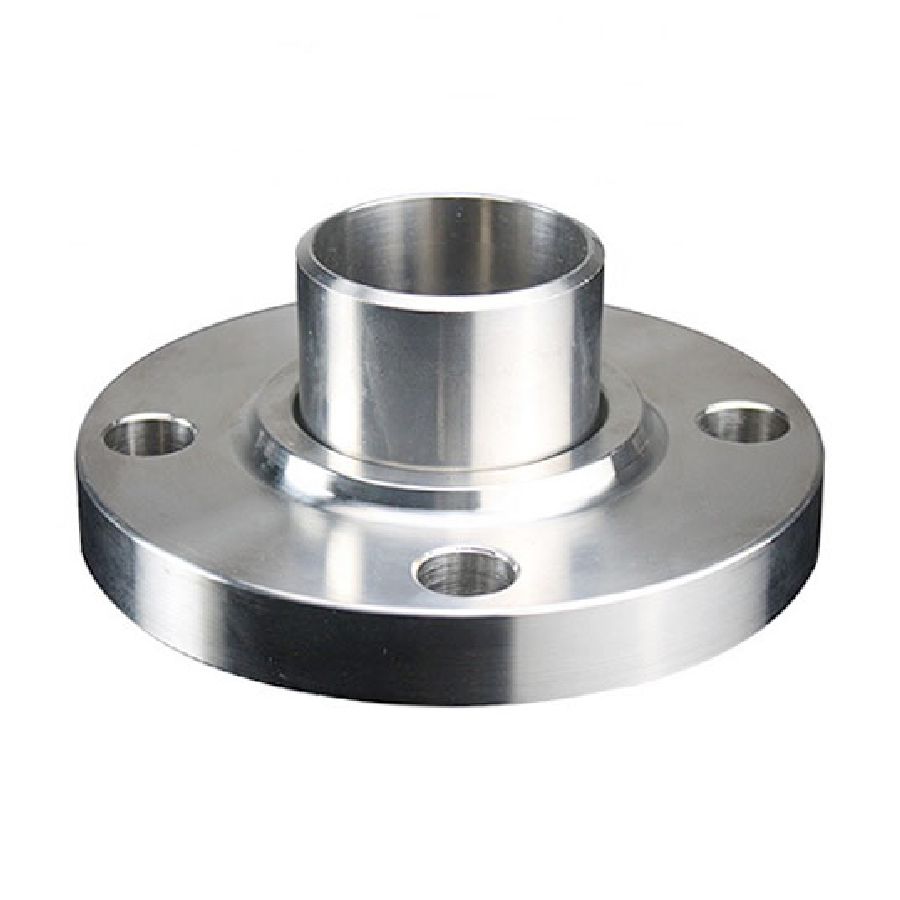

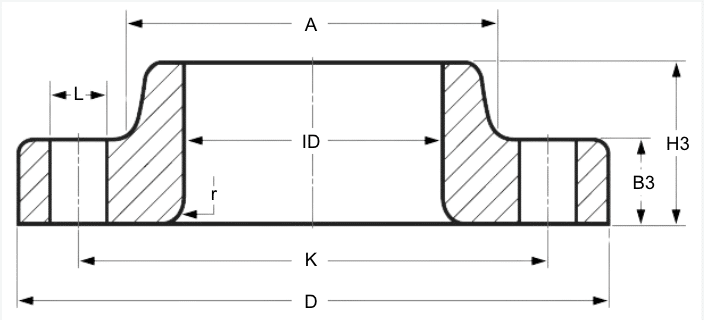

A Stub end Flange or more commonly called Lap Joint Flange is used with Stub Ends. A Stub End adapter slides through the Flange and is welded to the pipe. The Lap Joint Flange is similar to the Slip On Flange except it is flat across the face and has a radius machined at the bore. This allows it to rotate freely around the Stub for easy alignment to the mating Flange.
Lap Joint Flanges are supplied in all Diameters and pressure classes by Flangeman Steel Worldwide Pvt Ltd.
Types of materials in which Lap Joint Flanges are available
Stainless Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Advantages of Lap Joint Flanges
Lap Joint Flanges are inexpensive
They are quite suited for corrosive applications.
Lap Joint Flanges require only a single full penetration butt weld.
Only the stub end has contact with the process medium
These Flanges can be easily adjusted to align with the mating flange.
It is available in almost all pipe diameters.
Ideal for systems where frequent disassembly of the flange is required e.g. when cleaning or inspection is required.
It is possible to use a cheaper grade material for the lap joint flange e.g. carbon steel because only the stub end must match the associated pipe material/grade; this can result in considerable cost savings.
Application of Lap Joint Flanges
Lap Joint Flanges are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Lapped Joint Flanges through a worldwide network of stock-keeping branches. This Lap Joint Flange is used in various industries:
Oil and Gas Pipeline Industries
Chemical Industries
Plumbing
Water Supply Systems
Power Plant
Paper and Pulp Industries
Food Processing Industries
Structural Pipes
Standards and Specification of Blind Flanges.
| Particulars | Details |
|---|---|
| Standards | ANSI, JIS, DIN, EN1092-1, UNI, BS4504, SABS1123, AS2129, GOST-12820 |
| Dimensions | ANSI B 16.5 Lap Joint Flanges, EN1092-1 Lap Joint Flanges, |
| Materials | ASTM A105 Lap Joint Flanges, ASME SA105 Lap Joint Flanges ASTM A182 Lap Joint Flanges, ASME SA182 Lap Joint Flanges ASTM A350 LF1 Lap Joint Flanges, LF2 CL1/CL2 Lap Joint Flanges, LF3 CL1/CL2 Lap Joint Flanges ASTM A694 F42 Lap Joint Flanges, F46 Lap Joint Flanges, F48 Lap Joint Flanges, F50 Lap Joint Flanges, F52 Lap Joint Flanges, F56 Lap Joint Flanges, F60 Lap Joint Flanges, F65 Lap Joint Flanges, F70 Lap Joint Flanges ASTM B564 Lap Joint Flanges, ASME SB564 Lap Joint Flanges. |
| Class | Lap Joint Flanges 150#, Lap Joint Flanges 300#, Lap Joint Flanges 600#, Lap Joint Flanges 900#, Lap Joint Flanges 1500# & Lap Joint Flanges 2500# |
| Sizes | 1/2” NB TO 24” NB |
| Nickel Alloy | ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 ), ASTM A182 F304/304L Lap Joint Flanges, ASTM A182 F304H Lap Joint Flanges, ASTM A182 F304L Lap Joint Flanges, ASTM A182 F304 Lap Joint Flanges, ASTM A182 309H Lap Joint Flanges, ASTM A182 310H Lap Joint Flanges, ASTM A182 310 Lap Joint Flanges ASTM A182 F316/316L Lap Joint Flanges, ASTM A182 F316H Lap Joint Flanges, ASTM A182 F316L Lap Joint Flanges, ASTM A182 F316 Lap Joint Flanges. |
| Stainless Steel | ASTM A182 F316/316L Lap Joint Flanges, ASTM A182 F316H Lap Joint Flanges, ASTM A182 F316L Lap Joint Flanges, ASTM A182 F316 Lap Joint Flanges, ASTM A182 F316Ti Lap Joint Flanges, ASTM A182 F317 Lap Joint Flanges, ASTM A182 F317L Lap Joint Flanges, ASTM A182 F321 Lap Joint Flanges, ASTM A182 F321H Lap Joint Flanges, ASTM A182 F347 Lap Joint Flanges, ASTM A182 F347H Lap Joint Flanges, ASTM A182 F904L Lap Joint Flanges ASTM A182 F44 Lap Joint Flanges, ASTM A182 F51 Lap Joint Flanges, ASTM A182 F53 Lap Joint Flanges, ASTM A182 F55 Lap Joint Flanges, ASTM A182 F60 Lap Joint Flanges |
| Alloy Steel | ASTM A182 F1, A182 F5, A182 F9, A182 F11, A182 F12, A182 F22, A182 F91 |
We at, Flangeman Steel Worldwide Pvt Ltd, undertake hardness and resilience tests prior to delivering them to our customers. As we are one of the foremost Manufacturers of stainless steel flanges in India, we also provide Slip-on-flanges, lap joint flanges, socket weld flanges, threaded flanges, etc. Professionals from our squad also scrutinize the item to validate the quality of the product before packaging it for consumers
