Forged Fittings

Forged Tee Fittings – Straight & Reducing

Flangeman Steel Worldwide Pvt Ltd offers high-quality Forged Tee Fittings in both straight and reducing configurations, designed to connect three pipes and allow smooth flow branching in industrial piping systems. Manufactured using advanced closed-die forging technology, these fittings provide superior mechanical strength, leak-proof connections, and long-lasting durability.

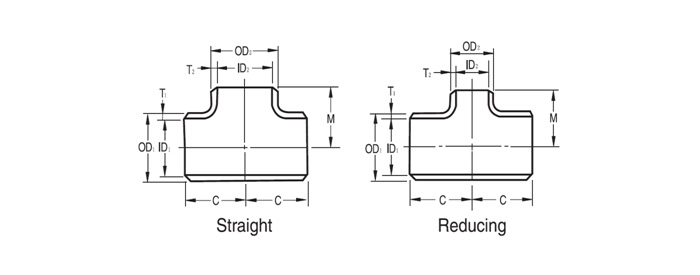

Straight Tee : Connects three pipes of the same diameter for equal flow distribution. Ideal for pipelines where branching of equal size is required.

Reducing Tee: Connects three pipes where the branch has a smaller diameter than the main line, allowing smooth flow transition between different pipe sizes.

Forged tee fittings are available in carbon steel, stainless steel (304/316), and alloy steel, making them suitable for high-pressure, high-temperature, and corrosive environments. They are widely used in oil & gas, petrochemical, water treatment, power plants, and industrial piping systems.

Features of Forged Tee Fittings – Straight & Reducing

Flangeman Steel Worldwide Pvt Ltd’s Forged Tee Fittings, available in straight and reducing configurations, are designed to provide reliable and leak-proof connections in piping systems while enabling smooth flow distribution. Straight tees connect three pipes of the same diameter, making them ideal for equal flow branching, whereas reducing tees allow a smooth transition between different pipe sizes, ensuring efficient flow in complex pipelines. Manufactured using advanced hot closed-die forging technology, these fittings offer superior mechanical strength, high tensile properties, and excellent durability for high-pressure and high-temperature applications. Available in carbon steel, stainless steel (304/316), and alloy steel, they provide excellent corrosion and chemical resistance. The precise engineering and smooth internal surfaces reduce turbulence and minimize pressure drop, while threaded and socket weld connection types ensure easy installation and reliable performance. All forged tees are manufactured in compliance with international standards such as ASME B16.11, MSS-SP-79/83, and ASTM specifications, guaranteeing quality, safety, and long-term service life across industries including oil & gas, petrochemical, power plants, water treatment, and industrial process piping systems.


Product Features

    Precision hot-forged construction for superior strength

    High tensile strength and durability

    Smooth internal surface for efficient flow

    Leak-proof threaded and socket weld connection types

    Available in straight and reducing configurations

    Corrosion-resistant material options

    Long service life with low maintenance

    Compliance with international standards: ASME B16.11, MSS-SP-79/83, and ASTM specifications


Material Used in Manufacturing Forged Tee Fittings – Straight & Reducing.

    Steel

    Carbon Steel

    Alloy Steel

    Duplex & Super Duplex Stainless Steel

    Nickel Based Alloys


Key Applications

Oil & Gas Industries

Petrochemical Plants

Refineries

Power Generation

Boiler Systems

Water Treatment Plants

Industrial Process Piping

Marine & Offshore Projects


Why Choose Flangeman Steel Worldwide Pvt Ltd?

Pulp and Paper Industry

Sea Water Equipment

Pharmaceutical Equipment

Off-Shore Oil Drilling Companies

Petrochemicals

Heat Exchangers

Pharmaceuticals


Standards and Specification.

Parameter Specification
Product Name Forged Tee Fittings
Types Straight Tee, Reducing Tee
Size Range 1/8” to 4” (DN6 – DN100)
Pressure Class – Threaded 2000 LB, 3000 LB, 6000 LB
Pressure Class – Socket Weld 3000 LB, 6000 LB, 9000 LB
Connection Type Threaded (NPT / BSPT) / Socket Weld
Manufacturing Process Hot Closed Die Forging
Carbon Steel Grade ASTM A105 / A105N
Stainless Steel Grades ASTM A182 F304 / F304L / F316 / F316L
Alloy Steel Grades ASTM A182 F11 / F22 / F91
Design Standard ASME B16.11
Testing Hydrostatic Test, PMI Test, Visual & Dimensional Inspection
Surface Finish Black, Galvanized, Pickled & Passivated

We at, Flangeman Steel Worldwide Pvt Ltd, undertake hardness and resilience tests prior to delivering them to our customers. As we are one of the foremost Manufacturers of stainless steel flanges in India, we also provide Slip-on-flanges, lap joint flanges, socket weld flanges, threaded flanges, etc. Professionals from our squad also scrutinize the item to validate the quality of the product before packaging it for consumers
