Forged Plugs
Forged Fittings
Plugs

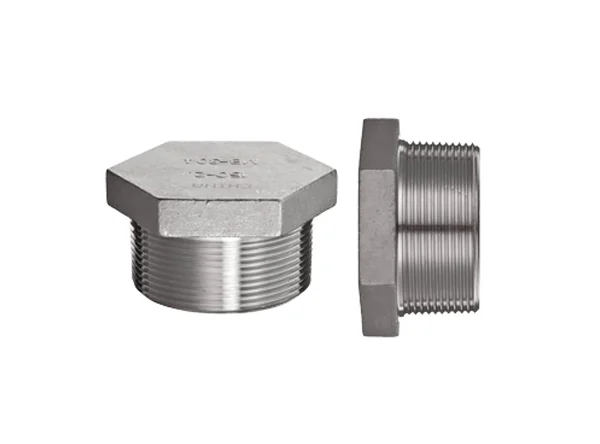

Flangeman Steel Worldwide Pvt Ltd manufactures and supplies high-quality Forged Plugs, designed to close the end of a pipe or fitting securely in high-pressure piping systems. Forged plugs are essential components used to seal unused outlets, prevent leakage, and ensure safe and efficient pipeline operation.
Manufactured using advanced hot closed-die forging technology, our forged plugs offer superior strength, durability, and resistance to high pressure and temperature conditions. These fittings are widely used in oil & gas, petrochemical, power generation, and industrial piping systems.
Types of Forged Plugs
Threaded Plugs (Square Head / Hex Head / Round Head) – Designed for threaded pipe connections (NPT / BSPT).
Socket Weld Plugs – Used in high-pressure systems requiring welded sealing.
Features of Forged Plugs
Flangeman Steel Worldwide Pvt Ltd’s forged plugs are precision-engineered to provide secure and leak-proof sealing in piping systems. Manufactured through the forging process, these plugs offer enhanced mechanical strength and improved grain structure compared to cast fittings. They are capable of withstanding high pressure and temperature environments while maintaining structural integrity. Available in carbon steel, stainless steel (304/316), and alloy steel, our forged plugs provide excellent corrosion resistance and long service life. Their precise threading and dimensional accuracy ensure easy installation and reliable performance in critical industrial applications.
Product Features
Precision hot-forged construction for superior strength
High tensile strength and durability
Smooth internal surface for efficient flow
Leak-proof threaded and socket weld connection types
Available in straight and reducing configurations
Corrosion-resistant material options
Long service life with low maintenance
Compliance with international standards: ASME B16.11, MSS-SP-79/83, and ASTM specifications
Material Used in Manufacturing Plugs.
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Key Applications
Oil & Gas Industries
Petrochemical Plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Pulp and Paper Industry
Sea Water Equipment
Pharmaceutical Equipment
Off-Shore Oil Drilling Companies
Petrochemicals
Heat Exchangers
Pharmaceuticals
Standards and Specification.
| Parameter | Specification |
|---|---|
| Product Name | Forged Fitting Union |
| Types | Threaded / Socket Weld |
| Size Range | 1/8” to 4” (DN6 – DN100) |
| Pressure Class – Threaded | 2000 LB, 3000 LB, 6000 LB |
| Pressure Class – Socket Weld | 3000 LB, 6000 LB, 9000 LB |
| Manufacturing Process | Closed Die Forging |
| Carbon Steel Grade | ASTM A105 / A105N |
| Stainless Steel Grades | ASTM A182 F304 / F304L / F316 / F316L |
| Alloy Steel Grades | ASTM A182 F11 / F22 / F91 |
| Design Standard | ASME B16.11 |
| Thread Standard | ANSI/ASME B1.20.1 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Black, Galvanized, Pickled & Passivated |
| Certification | EN 10204 3.1 MTC |
We at, Flangeman Steel Worldwide Pvt Ltd, undertake hardness and resilience tests prior to delivering them to our customers. As we are one of the foremost Manufacturers of stainless steel flanges in India, we also provide Slip-on-flanges, lap joint flanges, socket weld flanges, threaded flanges, etc. Professionals from our squad also scrutinize the item to validate the quality of the product before packaging it for consumers
