Butt-Weld Short 90°
Butt Weld

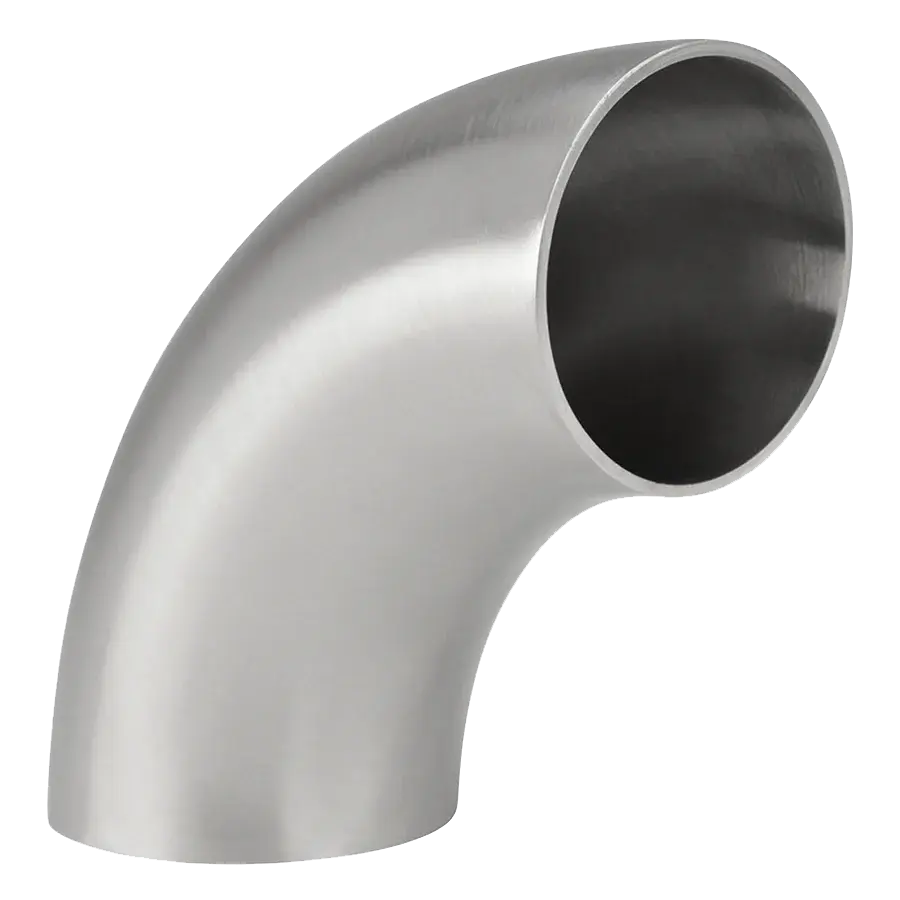

Butt-Weld Short 90° Elbow Fittings
Butt-Weld Short 90° Elbows are high-strength piping components designed to change the direction of flow by 90 degrees within compact spaces. The short-radius design allows installation in tight piping layouts while maintaining strength, structural integrity, and leak-proof performance, making them ideal for high-pressure and high-temperature applications.
Features of Butt-Weld Short 90° Elbows
Flangeman Steel Worldwide Pvt Ltd’s Butt-Weld Short 90° Elbows are manufactured using advanced hot-forging and butt-weld preparation techniques, ensuring uniform wall thickness and maximum mechanical strength. Key benefits include:
Long-radius design: Minimizes turbulence and pressure loss, enhancing flow efficiency
High strength and durability: Withstands high pressure, temperature, and stress.
Smooth internal surface: Reduces erosion, vibration, and noise in pipelines.
Permanent leak-proof joints: Butt-weld connections ensure robust and reliable installation.
Material versatility:Available in carbon steel, stainless steel (304/316), and alloy steel for excellent corrosion and chemical resistance.
Standards compliance: Designed per ASME B16.9, ASTM A234 WPB, and MSS-SP-75 for quality and reliability.
Material Used in Manufacturing.
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Applications
Short 90° Butt-Weld Elbows are widely used in industries requiring compact routing and high reliability:
Oil & Gas pipelines and refineries
Petrochemical and chemical processing plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Standards and Specification
| Parameter | Specification |
|---|---|
| Product Name | Butt-Weld 180° Elbow |
| Connection Type | Butt-Weld |
| Radius Type | Long Radius (1.5×D or more depending on standard) |
| Size Range | 1/2” to 24” (DN15 – DN600) |
| Pressure Class | ANSI/ASME B16.9 / Sch. 10 – XXS |
| Material | Carbon Steel, Stainless Steel (304/316), Alloy Steel |
| Manufacturing Process | Hot Forging & Butt-Weld Preparation |
| Design Standard | ASME B16.9, ASTM A234 WPB, MSS-SP-75 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Polished, Pickled & Passivated, Black |
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Smooth 180° flow design reduces turbulence and pressure loss.
Durable materials for long-term high-pressure and high-temperature performance.
Rigorous quality control including hydrostatic and dimensional testing.
Reliable performance in critical industrial piping systems.
Butt-Weld 180° Elbows from Flangeman Steel Worldwide Pvt Ltd provide smooth flow reversal, mechanical strength, and international standards compliance, making them ideal for complex and high-performance piping systems.
