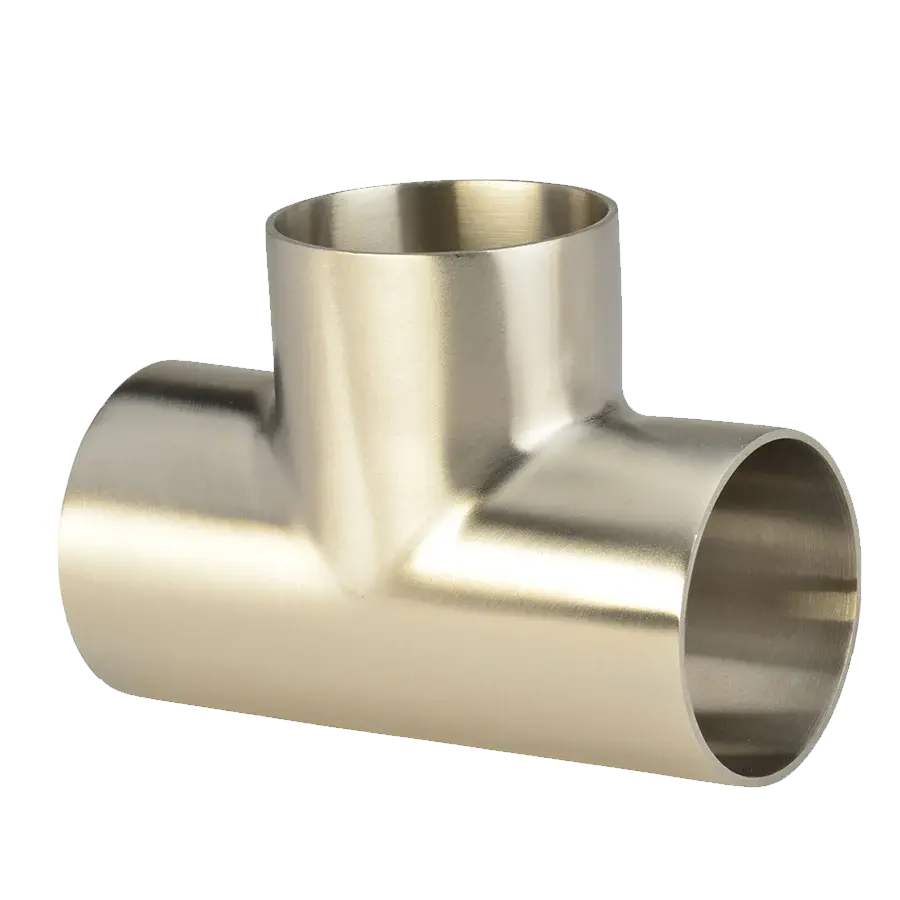

Butt-Weld Equal Tee Fittings
Butt Weld
Butt-Weld Equal Tee Fittings
Butt-Weld Equal Tee Fittings are high-strength piping components designed to branch a main pipeline into two equal outlets or combine two flows into one. Manufactured using precision hot-forging and butt-weld preparation techniques, these tees provide uniform wall thickness, superior mechanical strength, and leak-proof connections, making them ideal for high-pressure, high-temperature, and critical industrial piping applications.
Features of Butt-Weld Equal Tees
Flangeman Steel Worldwide Pvt Ltd’s Butt-Weld Equal Tees offer reliable performance and durability, with key features including:
Uniform branch size: Main and branch outlets are of the same diameter, ensuring balanced flow.
High strength and durability: Suitable for demanding pressure and temperature conditions.
Smooth internal surface:Minimizes turbulence and pressure drop for efficient fluid flow.
Permanent leak-proof joints: Butt-weld connection ensures strong, long-lasting installation.
Wide material options: Carbon steel, stainless steel (304/316), and alloy steel for corrosion and chemical resistance.
Standards compliance: Manufactured according to ASME B16.9, ASTM A234 WPB, and MSS-SP-75.
Material Used in Manufacturing
Steel
Carbon Steel
Alloy Steel
Duplex & Super Duplex Stainless Steel
Nickel Based Alloys
Applications
Butt-Weld Equal Tees are widely used in piping systems where flow splitting or combining is required:
Oil & Gas pipelines and refineries
Petrochemical and chemical processing plants
Refineries
Power Generation
Boiler Systems
Water Treatment Plants
Industrial Process Piping
Marine & Offshore Projects
Standards and Specification
| Parameter | Specification |
|---|---|
| Product Name | Butt-Weld Equal Tee |
| Connection Type | Butt-Weld |
| Size Range | 1/2” to 24” (DN15 – DN600) |
| Pressure Class | ANSI/ASME B16.9 / Sch. 10 – XXS |
| Material | Carbon Steel, Stainless Steel (304/316), Alloy Steel |
| Manufacturing Process | Hot Forging & Butt-Weld Preparation |
| Design Standard | ASME B16.9, ASTM A234 WPB, MSS-SP-75 |
| Testing | Hydrostatic Test, PMI Test, Visual & Dimensional Inspection |
| Surface Finish | Polished, Pickled & Passivated, Black |
Why Choose Flangeman Steel Worldwide Pvt Ltd?
Compact and strong design for tight piping layouts.
High-performance materials for durability and corrosion resistance.
Rigorous quality control including hydrostatic and dimensional testing.
Long service life with minimal maintenance for critical piping systems.
Butt-Weld Equal Tees from Flangeman Steel Worldwide Pvt Ltd provide reliable flow distribution, mechanical strength, and compliance with international standards, making them suitable for demanding industrial and process piping systems.
